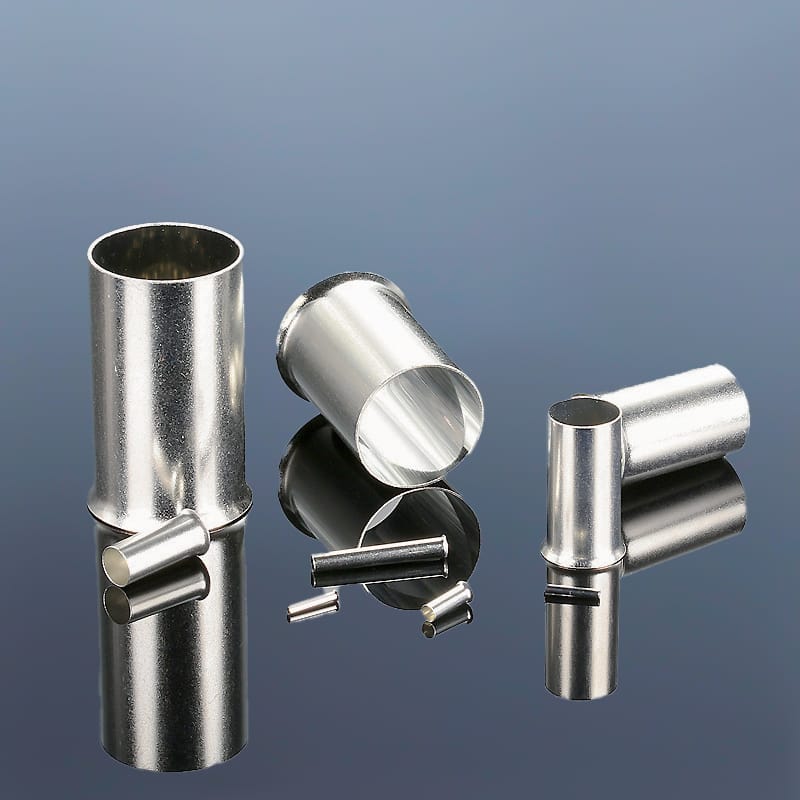

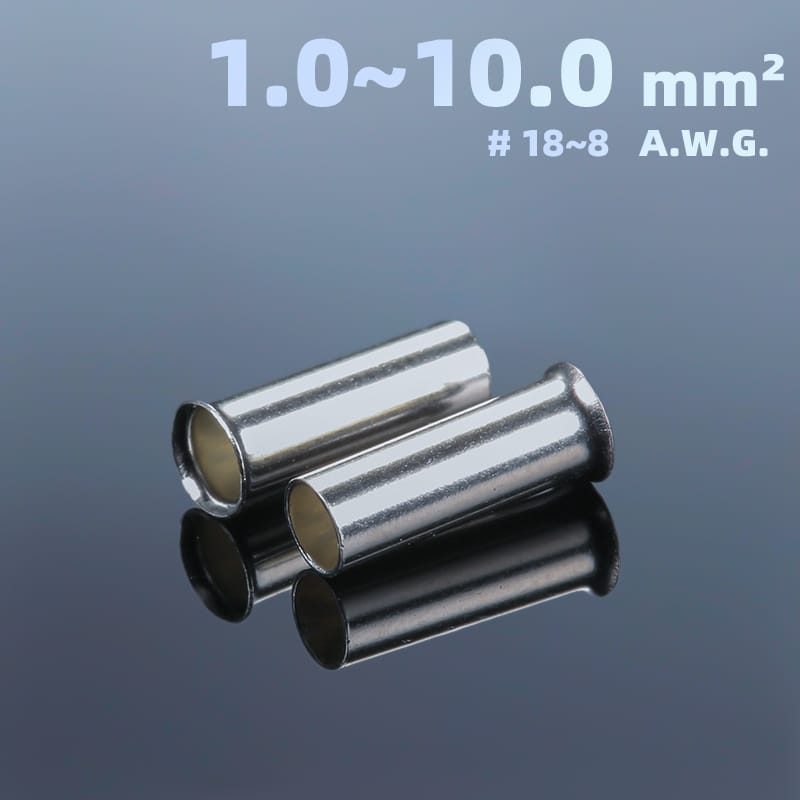

Non-Insulated Cord End Terminals from the EN series are precision-engineered bare copper wire ferrules manufactured from seamless T2 copper, delivering superior electrical conductivity, excellent mechanical strength, and consistent crimping performance. Designed for professional electrical installations, these terminals provide clean, reliable, and long-lasting cable terminations for a wide range of industrial and commercial applications.
The standard version features a durable tin-plated finish, offering strong resistance to oxidation and corrosion while maintaining stable electrical performance. Tin-plated cord end terminals are widely used in general electrical wiring, industrial control panels, and automotive systems, where reliability, ease of installation, and cost efficiency are essential. The tin coating protects the copper surface and ensures dependable performance under normal operating conditions.
For more demanding applications, an upgraded silver-plated version is available. Silver plating provides lower electrical resistance and enhanced conductivity compared to tin, making it particularly suitable for high-frequency systems, precision electronics, audio equipment, and communication devices. In environments where signal integrity, low contact resistance, and stable transmission are critical, silver-plated wire ferrules deliver improved and consistent performance.
In addition, a custom gold-plated version is available for selected standard models (EN1008, EN1508, EN2508, EN4009, EN6012, EN10-12). Gold plating offers exceptional resistance to oxidation and chemical corrosion, ensuring extremely stable electrical contact over long periods of use. Due to its superior surface stability, gold-plated cord end terminals are commonly applied in high-end audio systems, professional sound equipment, aerospace electronics, military devices, and advanced instrumentation, where long-term signal reliability and minimal contact resistance are essential. This option is typically supplied as a custom solution to meet specific technical or performance requirements.
Beyond material and surface treatment, the key advantage of cord end terminals lies in their role in proper wire termination and conductor protection. When stranded copper wires are inserted directly into terminal blocks or screw clamps without ferrules, individual strands may spread, deform, or break. Over time, this can result in unstable connections, increased contact resistance, localized heating, and potential system failure.

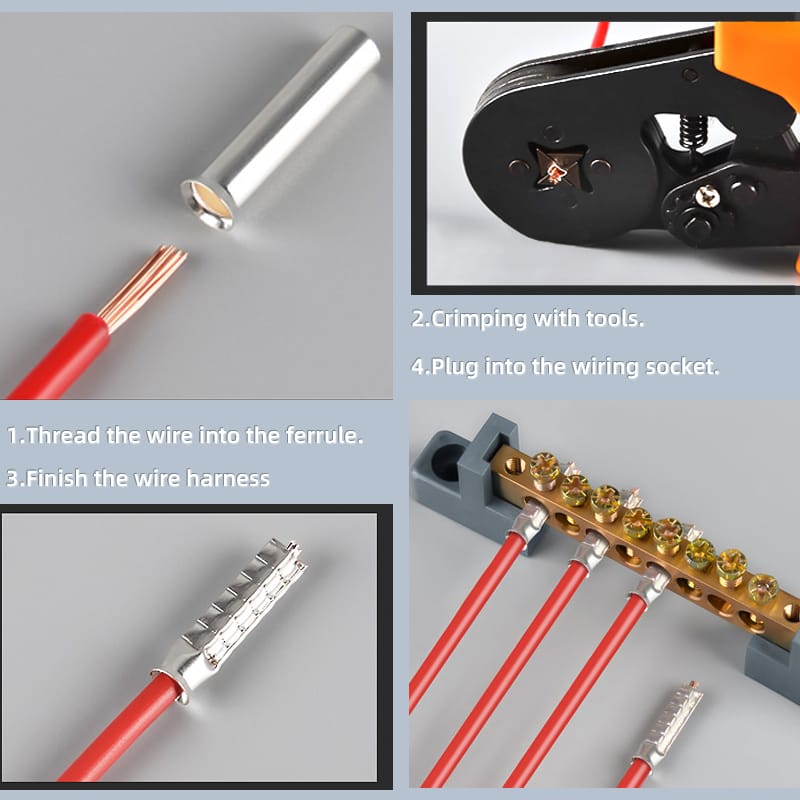

By crimping a non-insulated cord end terminal onto the stripped conductor, all wire strands are compacted into a solid, uniform structure. This prevents strand separation, improves mechanical stability, and ensures consistent contact pressure within terminal blocks and connectors. As a result, electrical connections become safer, more reliable, and easier to install, inspect, and maintain.
The use of bare copper wire ferrules also significantly extends the service life of electrical connections. The copper core is protected against mechanical stress, vibration, and repeated tightening, which is especially important in industrial panels, automation equipment, and machinery exposed to continuous operation or thermal cycling. Properly crimped ferrules reduce the risk of loosening over time and help maintain stable electrical performance throughout the system’s lifespan.
Thanks to their seamless T2 copper construction and precise manufacturing tolerances, EN series non-insulated cord end terminals are fully compatible with standard crimping tools and terminal blocks. They are suitable for a wide range of conductor sizes and are widely used in industrial control cabinets, electrical distribution systems, automation equipment, automotive wiring, and professional electrical installations across Europe and North America.
Whether selecting the tin-plated standard version, the silver-plated upgrade, or the custom gold-plated option, these professional wiring cable terminals provide secure connections, long service life, and dependable performance for both routine wiring tasks and demanding electrical projects.

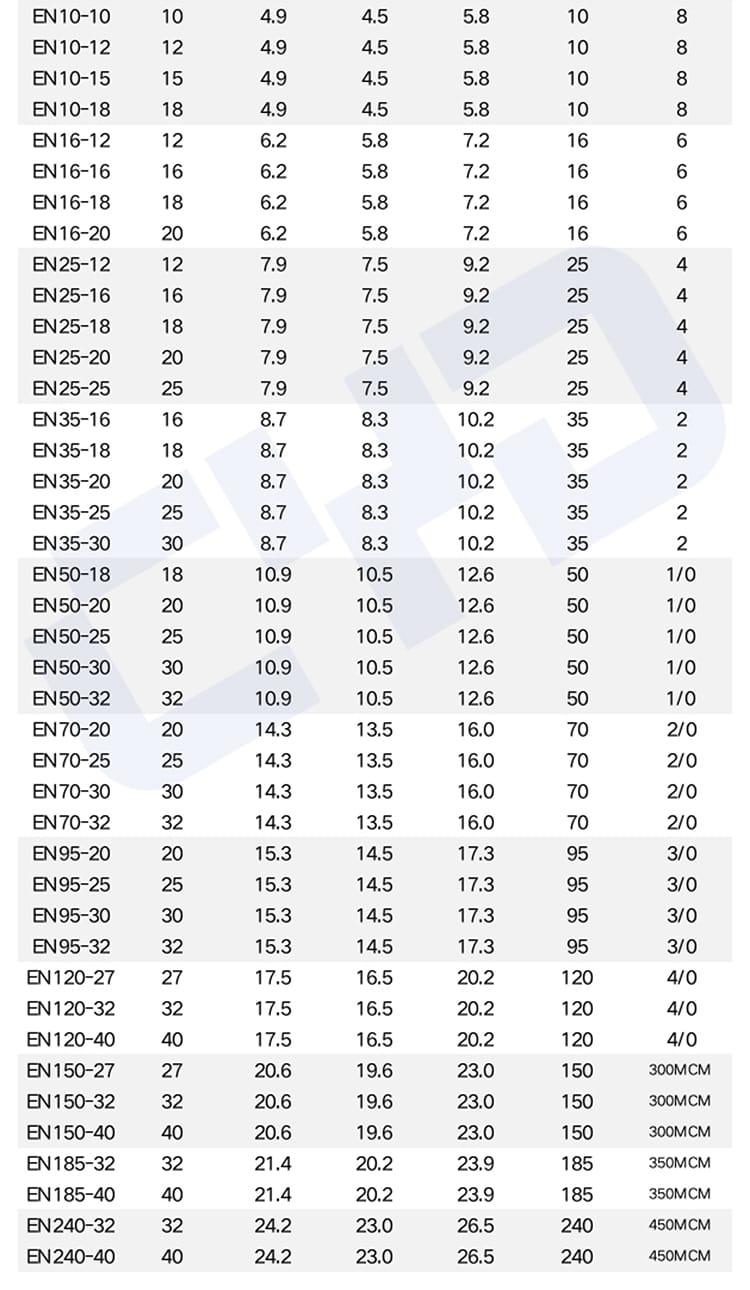

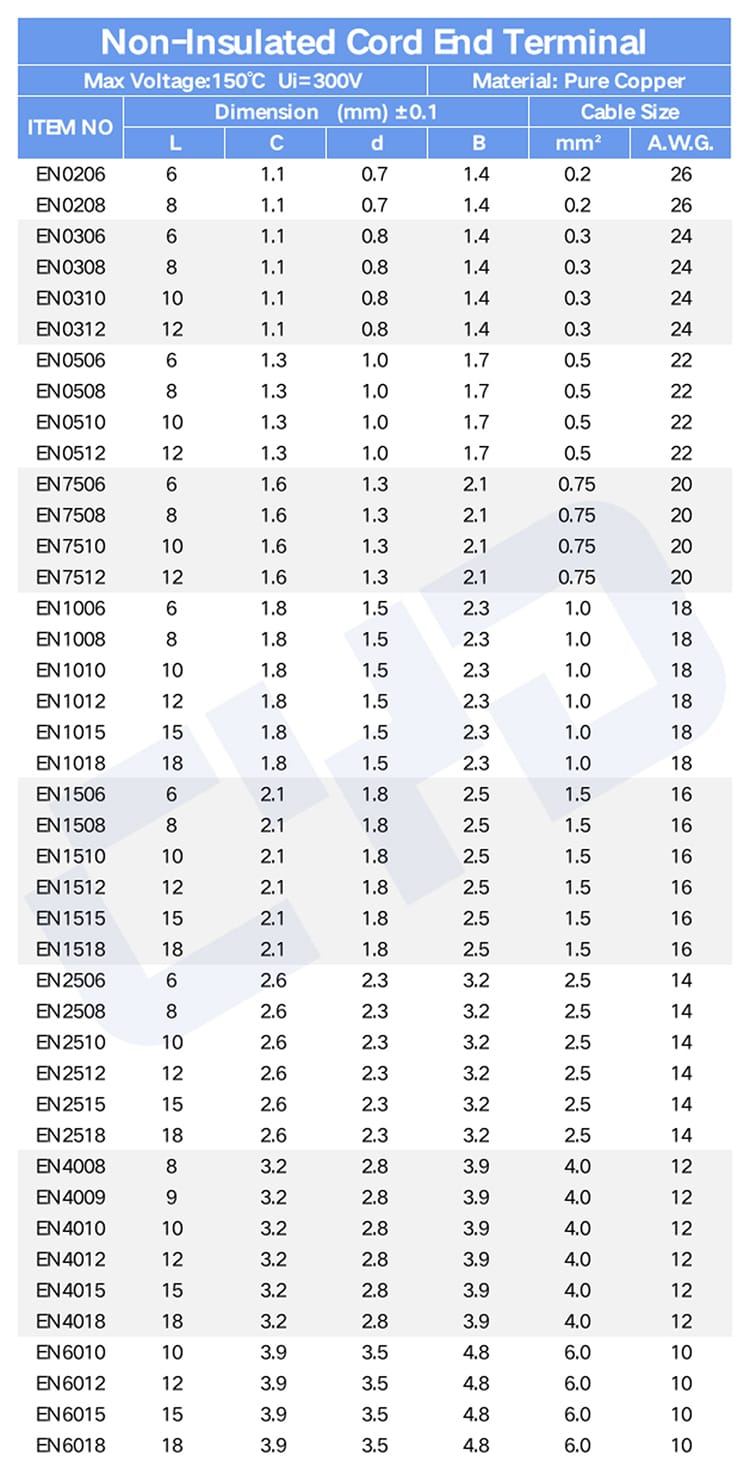

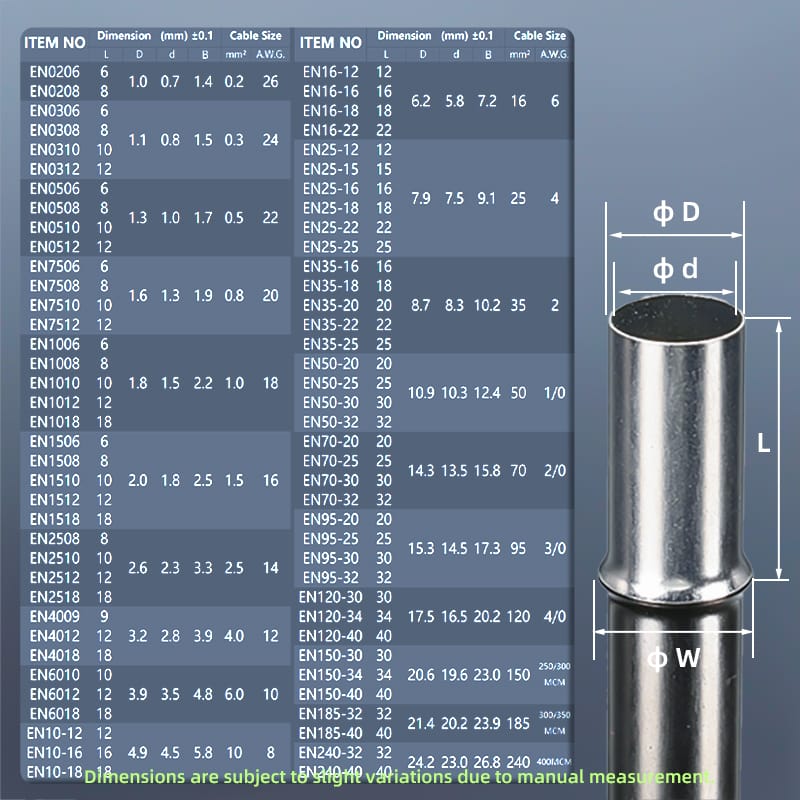

Popular Models : EN1008 EN1508 EN2508 EN4009 EN6012 EN10-12
