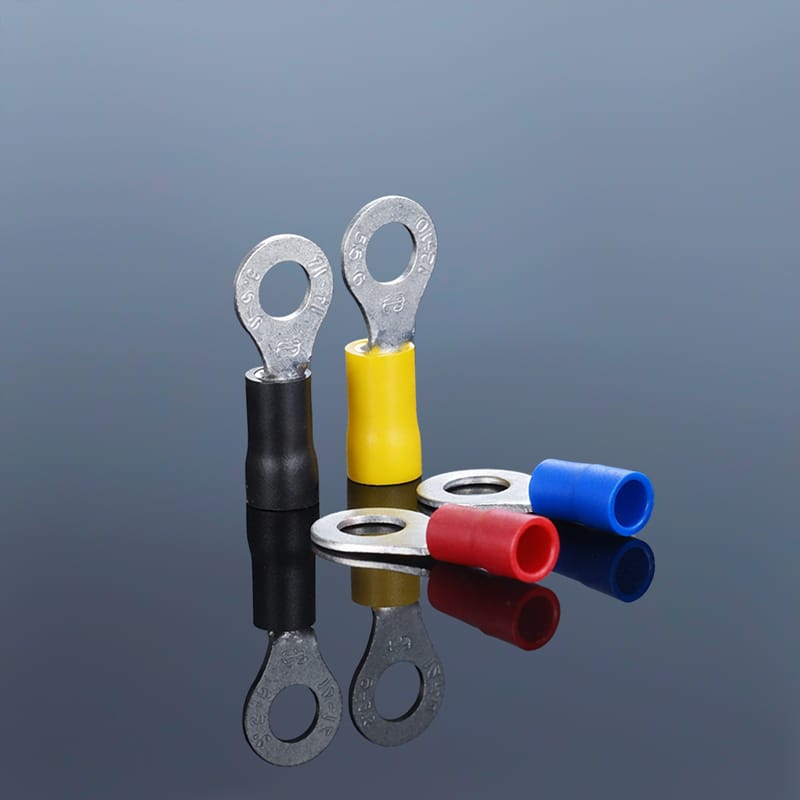

PVC Insulated Ring Terminals are designed to provide safe, durable, and reliable electrical connections for a wide range of wiring applications. These crimp ring connectors feature a high-conductivity copper ring with a tin-plated surface and a protective PVC insulation sleeve, ensuring excellent electrical performance, corrosion resistance, and enhanced installation safety.

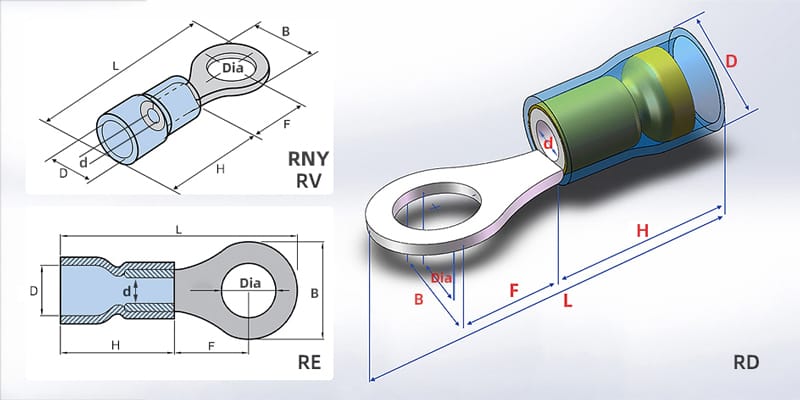

To meet different installation requirements, this product range is available in three insulation structure types: Standard, Easy-Entry, and Copper Sleeve versions. Each type is designed to address specific wiring needs while maintaining consistent electrical and mechanical performance.
The Standard PVC insulated ring terminals offer a balanced design suitable for most general electrical wiring tasks. The insulation sleeve provides effective electrical isolation and basic strain relief, making these terminals ideal for control panels, appliances, and general-purpose electrical installations.
The Easy-Entry insulated ring terminals feature a tapered, narrowed insulation collar that guides the wire smoothly into the crimp barrel. This design helps reduce insertion resistance during assembly, improves crimping efficiency, and minimizes the risk of conductor misalignment. Easy-entry ring terminals are especially useful for high-volume wiring work, confined spaces, or applications requiring fast and consistent installations.
The Copper Sleeve insulated ring terminals incorporate an additional copper sleeve inside the crimp barrel. This reinforced structure enhances mechanical strength and improves crimp stability, especially when used with stranded conductors. The copper sleeve helps ensure uniform compression of the wire strands, resulting in lower contact resistance, increased pull-out strength, and improved long-term reliability.

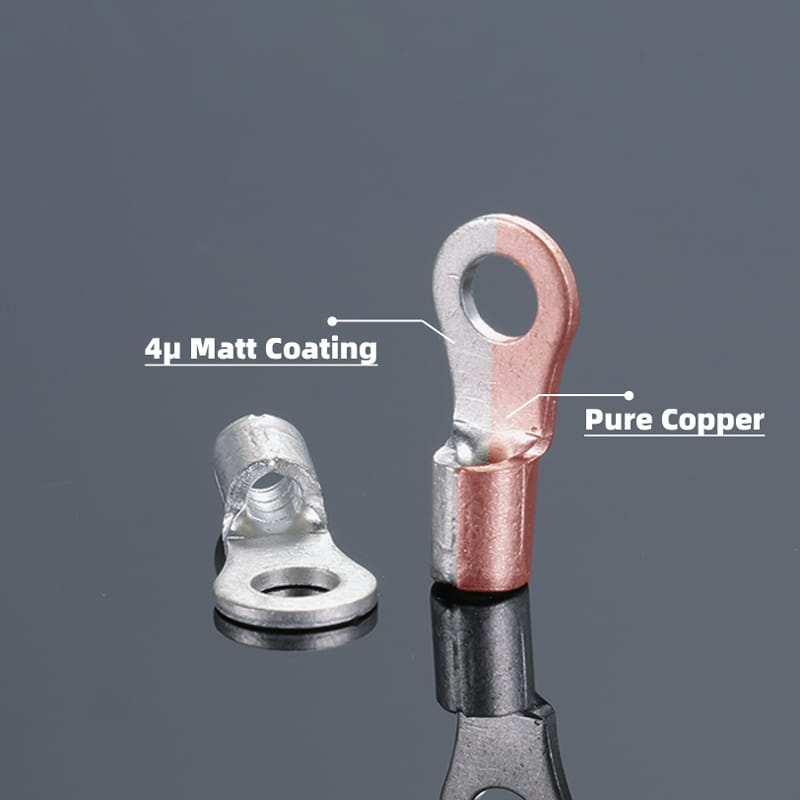

All versions are manufactured from high-purity copper to ensure excellent conductivity and stable current flow. The tin-plated finish effectively resists oxidation and corrosion, extending service life in humid or mildly corrosive environments. Compared with bare terminals, the insulated design reduces the risk of accidental short circuits and improves overall electrical safety.
These PVC insulated ring lugs are designed for standard crimping tools and provide a secure mechanical and electrical connection after crimping. The closed-ring design offers maximum contact area when mounted with screws or bolts, ensuring vibration-resistant connections in demanding applications.

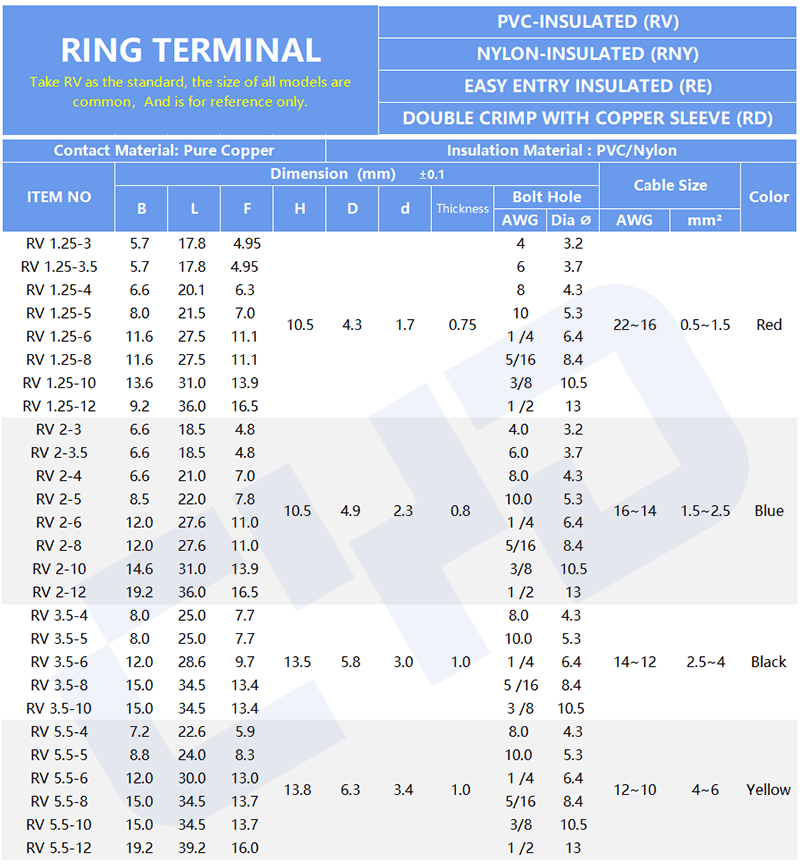

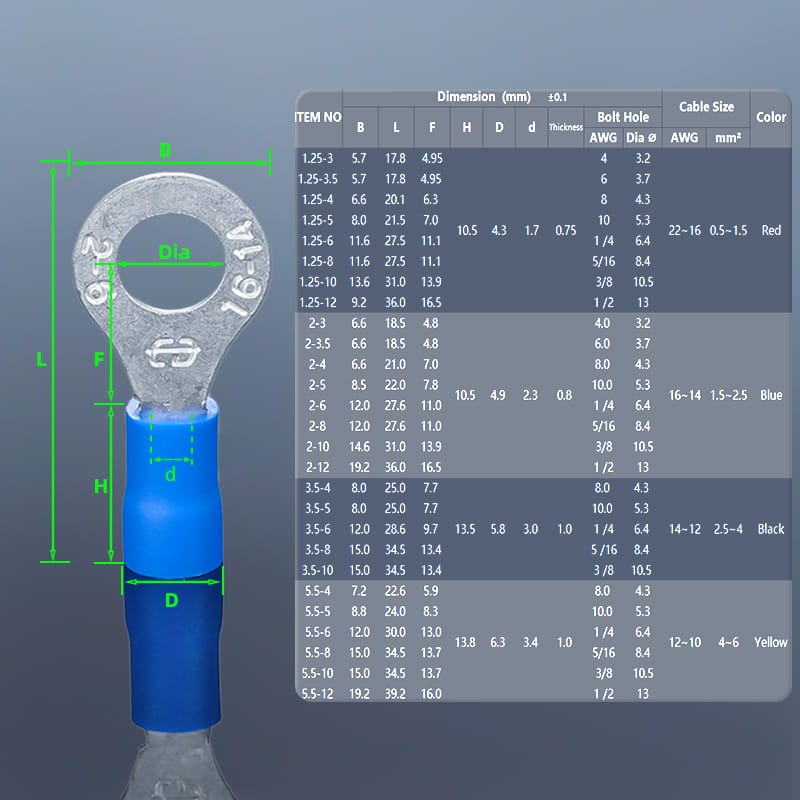

Available in M3 to M8 stud sizes and compatible with AWG 22–10 wires, these insulated ring terminals are widely used in electrical control panels, industrial equipment, automotive wiring systems, power distribution units, and general electrical installations. Their structured insulation design improves wiring organization and enhances long-term connection stability.
By combining high-quality copper, reliable tin plating, and carefully engineered PVC insulation, these insulated crimp ring connectors deliver dependable electrical performance, installation efficiency, and long service life. They are an excellent choice for professional electricians, technicians, and industrial users seeking safe and reliable electrical ring terminals for structured wiring systems.
